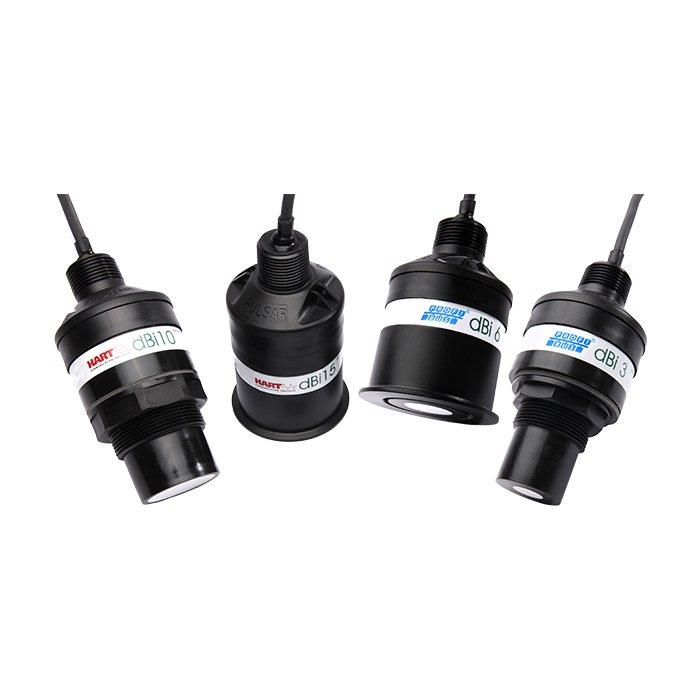

The dBi Profibus series transducers are a range of non-contacting, ultrasonic level sensors that make use of the widely used Profibus Protocols. The self-contained level sensors are available in a variety of different measurement ranges ranging from 125 mm to 15 m (4.9 in to 49.2 ft) to suit a wide range of applications from wastewater level measurement to industrial level requirements.
The dBi Profibus non-contacting level sensors are compatible with Profibus profile 3.0.2 and provide very high resolution to give exceptional accuracy and a rapid response time of 1 second! The sensors also benefit from Pulsar Measurement's unique DATEM echo processing technology, so the level sensors are able to zone in on the true target and map out interferences. The transducers can be programmed with our PC Software or using PLC / HMI with Profibus Network.
To find out more about the dBi level sensors, see the Downloads tab below.
- Self-contained
- Two-wire
- Solids or liquids applications
- Various Mounting options
- ATEX Approvals
- DATEM digital echo processing software
- Uses the standard programming tools on our dedicated PC system
| General Specifications | |
|---|---|
| Spec: | Description: |
| Housing Material | Valox 357 PBT (Polybutylene terephthalate) |
| Temperature Compensation | Internal temperature sensor, ±0.5 °C (±0.5 °F) |
| Transducer Cable Requirements | Twin screened. Integral cable length 5 m, 10 m, 20 m, and 30 m (16.4 ft, 32.8 ft, 65.6 ft, and 98.4 ft). |
| Operating Temperature | Process Temperature -40 °C to +80 °C (-40 °F to +176 °F) |
| Ingress Protection | IP68 to BS EN 60068-2-17:1995 and BS EN 60529 (Nema 6P available) |
| Power | Bus-powered, per IEC 61158-2; 20mA (general purpose or I.S. version) 20mA 18-24 V DC |
| Update Time | PA modem; Simatic PDM, EDDL, FDT/DTM on request. PC interface 2-wire loop powered from PC or laptop. No external power required. |
| Outputs | Profile 3.0.2, Class A with I&M functionality |
| Options | |
|---|---|
| Option: | Description: |
| Measurement range | 125 m to 15 m (4.9 in to 49.2 ft) |
| Accessories | Drip Shield Submersible Shield |
| Mounting | 1.5 in Thread or 1.5 in Thread PVDF face |
| Product Brochure | Download |
| Datasheet | Download |
| Installation Manual | Download |
| Instruction Manual | Download |
| Technical Drawing (UNCONTROLLED COPIES) | |
| DPV0 GSD File | Download |
| DPV1 GSD File | Download |
| dBi HART & Profibus - Ex ia Certificate | Download |
| Ex ia Certificate | Download |
| Revision 1.1 | Download |
| Revision 1.0 | Download |
| Datasheet | Download |
| Ask the Expert | Rob Davis on dBi | Download |
| Ask the Expert | Marc Richards on PC Suite | Download |
| Pulsar Measurement Product Warranty | Download |
- ATEX; Ex ia Zone 0 and FISCO
- EC Declaration of Conformity
- FM Approval
