Modbus Level Sensor

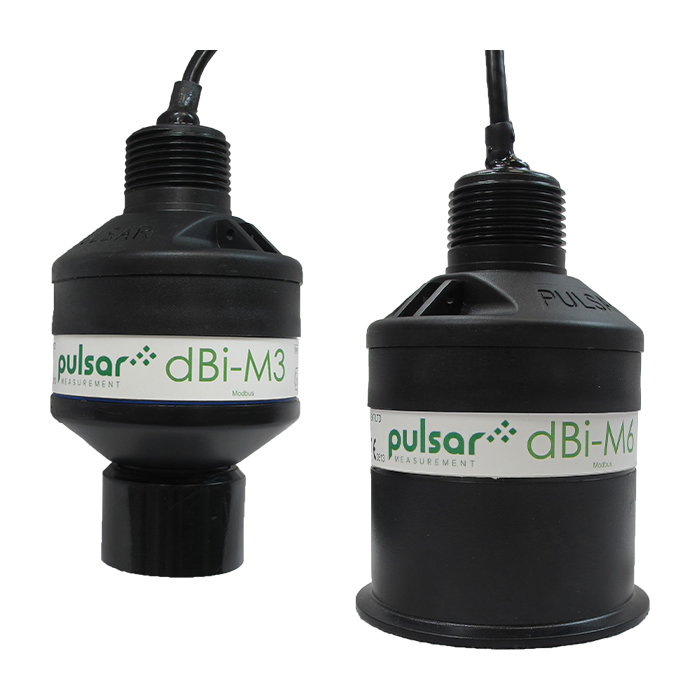

The dBi Modbus (dBi-M) series of level sensors are the ultimate, low-power, ultrasonic level sensors that benefit from Modbus communication. This series of level sensors features Pulsar Measurement’s world-leading DATEM echo processing power for accurate and reliable level measurement in the most challenging applications, with a suitable measurement range of 125 mm to 15 m (4.9 in to 49.2 ft).

Why Modbus?

Modbus is often used to connect a plant/system supervisory computer with a remote terminal unit in supervisory control and data acquisition (SCADA) systems. The Modbus protocol uses character serial communication lines, ethernet, or the internet protocol suite as a transport layer. The protocol supports communication from multiple devices connected to the same cable or ethernet network.

Suitable for Low Power and Remote Applications

The dBi-M is ready for the most challenging remote applications. The IP68 design enables the unit to be fully submerged, perfect for applications where flooding or surcharging can occur. The ultra-low power consumption of the dBi-M will give you the longest deployment time possible, providing data insights for extended periods of time while reducing the need to maintain your data collection system. The dBi-M is a greener solution to remote network monitoring and discharge point monitoring.

Designed to fit low-power and low-overhead needs for remote installations, users can multi-drop up to 120 dBi-M level sensors with just a single controller. The open protocol allows the dBi-M to connect to any Modbus-enabled device, saving thousands on installation costs and labor.

The Modbus Series of Transducers are available in a range of different formats, designed to be able to meet the needs of your application. Units are available with flanged or front-thread connections for mounting flexibility, PTFE coating for corrosive applications, fitted with a foam face for solids applications, and submergence shields to prevent the face of the transducer from becoming dirty in applications where submergence is common.

dBi-M now FM Approved

Our dBi-M, Modbus Intelligent Ultrasonic Transducers, are now FM-approved for Class I, Div 1 installations in the US and Canada. Having this approval showcases the quality of the sensor and gives assurance that by purchasing a dBi-M you'll be receiving a product of the highest standard.

The FM Approval is a product certification that is a globally recognized benchmark that acts as a stamp of assurance, signifying that a product is safe, reliable, and high quality.  FM certification is particularly significant in high-risk environments with prevalent fire hazards, explosions, and other potential risks.

Other Approvals

• CE Approval
• ATEX Approval: Zone 0: II 1 G Ex ia IIC T4 Ga, and Zone 20: II 1 D Ex ia IIIC T130°C Da
• FM Approval for Class I, Div 1 installations in the US and Canada
• Also suitable for Zones 1, 2, 21, and 22

Use the downloads tab below to learn more about the dBi-M non-contacting ultrasonic level sensor.
