Ultra Lite offers the ability to dedicate the functionality of the unit to any of three specific duties e.g. Level or volume measurement, pump control, or flow measurement. A most versatile system which can be quickly configurable to support three separate functions within seconds. Ideal for simplicity of purchase and off-the-shelf spares.
Ultra Lite is a dedicated device with the ability to perform all aspects of the task required giving you no compromise in specification. The unit is easy to set-up using the unique Quick Set Up menu. Ultra Lite can be programmed either by the built-in keypad (standard on all wall and fascia units), or by PC via the RS232 serial interface (optional). All parameters are stored in non-volatile memory, so are retained in the event of power interruption. A second backup copy of all parameters can also be retained in the Ultra Lite memory, in case an alternative set of parameters needs to be stored.
The system utilizes the unique DATEM software (Digital Adaptive Tracking of Echo Movement). This is a proven digital mapping technique unique to Pulsar Measurement, which gives the system unequalled ability when identifying the true target level in the face of competing echoes from pipes, pumps, or other obstructions.

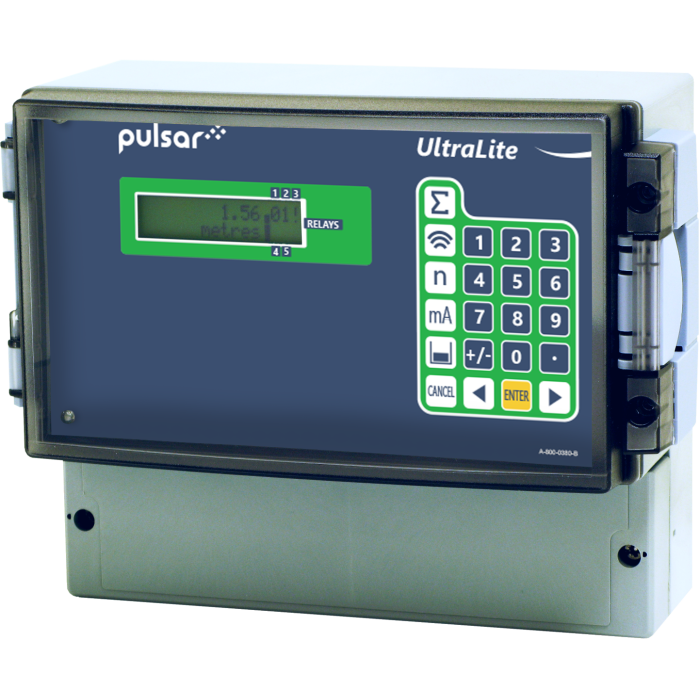

The Pulsar Measurement Ultra Lite ultrasonic level controller has been designed to provide maintenance-free fit-and-forget performance.
- Easy to use 'Quick Set Up' menu
- Multiple range of functions
- Versatile system
- DATEM digital echo processing
| General Specifications | |
|---|---|
| Spec: | Description: |
| Outside Dimensions: | Wall: 235 x 184 x 120 mm (9.25" x 7.24" x 4.72") Fascia: 200 x 112 x 108 mm (7.87" x 4.40" x 4.25") |
| Weight: | Wall: Nominal 1.2kg |
| Max & Min Temperature (electronics): | -20°C to +55°C (-4°F to + +131°F) |
| Flammable Atmosphere Approval: | Safe area: compatible with approved dB transducers |
Accuracy: | 0.25% of the measured range or 6 mm (0.23”) whichever is greater |
| Resolution: | 0.1% of the measured range for 2 mm (0.07”) whichever is greater |
| Analog Output: | Isolated (floating) output (to 150V) of 4-20mA or 0-20mA into 1kΩ (user programmable and adjustable) 0.1% resolution |
| Digital output: | Full Duplex RS232 |
| Power Supply: | 85-264C ac 50/60 Hz, DC 22-28 V 10W maximum power (typically 6W) |
| Fuses: | 10W maximum power (typically 6W) 2A slow blow |
- Wall or fascia mount
- RS482 Modbus RTU/ASCII
- Profibus DPV0 or DPV1 (slave device)
- CE Approval
