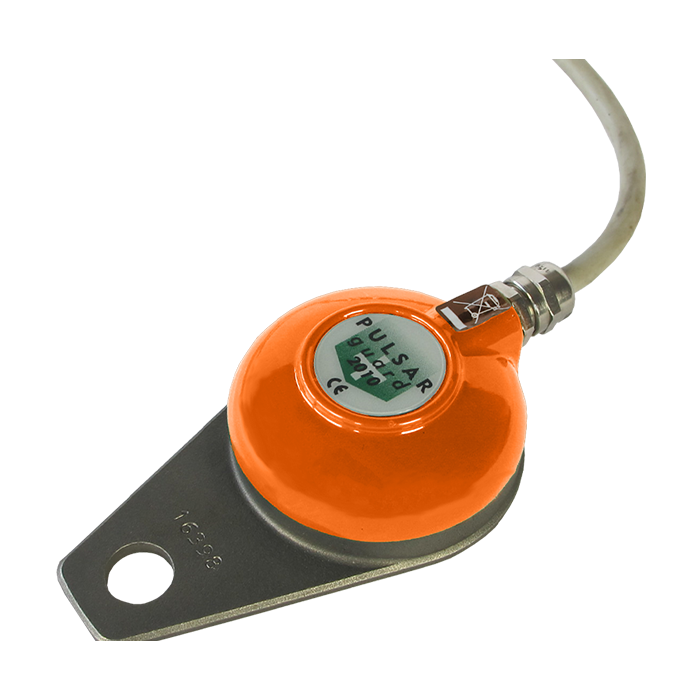

The PulsarGuard acoustic sensor offers reliable solids flow detection, it detects structure-borne acoustic signals caused by the movement of material. This movement then causes impacts and frictional contact within a containment (e.g. the inside of a pipe). The sensor detects and reacts instantly to changes in solids flow and warns of blockages and foreign object detection, high flow, low flow, or no-flow conditions.
Maintenance Free Measurement
PulsarGuard series are non-contacting and maintenance-free. They are fastened to the outside of the structure, meaning minimal installation costs and zero shut downtime for your process. The compact design of the sensor means that it can be installed in the tightest of positions or environments. The high-frequency detection of the PulsarGuard picks up signals that are often undetectable to the human ear. They are not affected by outside noise which allows the sensor to be used in environments where there is a high degree of machinery or process noise without interference.
- Non-invasive and maintenance-free
- Simple bolt-on installation
- Low cost
- No moving parts and vibration resistant
- IP68 Stainless Steel housing
- Highly reliable in low or high temperature
- ATEX Flammable atmosphere approved (2011 option only)
| General Specifications | |
|---|---|
| Spec: | Description: |
| Size: | 125 mm (4.92 in) long |
| Weight: | 640 g (1.41 lbs) |
| Sensor Mounting: | Tab with 14 mm (0.55 in) hole |
| Electrical Connection: | 4 core screened value |
| Construction: | Cap and base housing in 316 stainless steel |
| Cable: | 4 m (13 ft)of 4 core shielded 24AWG |
| Options | |
|---|---|
| Option: | Description: |
| 2015 Series | For high-temperature applications. Not intrinsically safe. |
| 2011Z | Suitable for Zenner barriers only. Intrinsically safe |
| 2001G | Suitable for use with galvanic barriers. Intrinsically safe |
| 2020 Series Controller | IP65 fascia mounted process monitor and controller configured to work with the 2010 sensor |
| Optional 2020 Pods | 2 relay outputs |
| Modbus RTY Serial Comms Pod | Optional Communications Package |
- IP68
- CE Approval
- ATEX Approval
