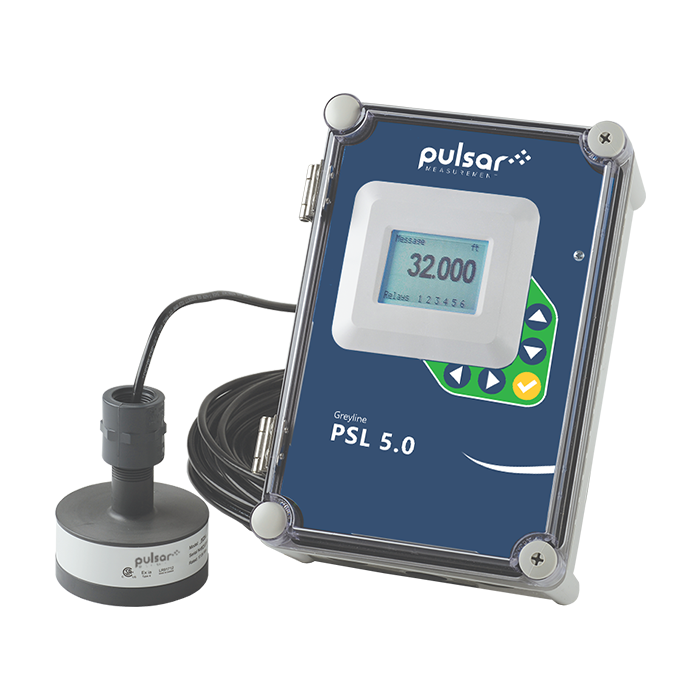

The PSL 5.0 Pump and Lift Station Level Controller is an ultrasonic level sensor that mounts above the liquid surface for accurate and reliable non-contacting level measurement. The PSL 5.0 is ideal for sewage pump stations, lift stations, wet wells, and tank level measurements. The unit includes six independently programmable control relays for pump or valve control, level alarms, dialers, temperature alarm, and echo loss alarms.
The easy-to-use simple menu system and built-in keypad can be used to program application parameters such as measurement ranges, relay set points, and pump alternation sequences. The PSL 5.0 also includes the ability to connect a submersible pressure sensor, or any other 4-20mA level sensor, for fail-safe hybrid sensing. Perfect for wastewater control, sump control, wet well level monitoring, and industrial applications where backup measurement sensors are required.
Non-Contacting Ultrasonic Sensor or Optional Pressure Sensor
Built-in 2-Key Calibrator
Watertight, Dust-tight Enclosure
General Specifications
Spec name:
Description:
Electronics Enclosure
NEMA4X (IP 66) polycarbonate with clear, shatterproof cover
Accuracy
±0.25% of range or 2 mm (0.08 in), whichever is greater
Display
white, backlit matrix - displays calibration menu, relay status, runtime reports, and sensor status
Calibration
Level or Range mode in selectable units
Programming
Built-in 5-button keypad, password protected
Power Input
100-240 V AC 50/60 Hz, 2.4-5.6 W depending on options
Outputs
Isolated 4-20mA, 1000 ohm
Control Relays
6 form 'C' dry contact relays rated 5 A SPDT; programmable level alarm and/or pump control modes, pump alternation/sequencing, failsafe/echo-loss, air temperature alarm
Surge Protection
AC power, 4-20mA, and ultrasonic sensor
Operating Temperature (Electronics)
-20 °C to 60 °C (-5 °F to 140 °F )
PZ34 Sensor Specifications
Spec name:
Description:
Maximum Range
10 m (32 ft) - optional sensors for longer ranges
Deadband (Blanking)
Programmable, Minimum 406 mm (16 in)
Beam angle
8° Locate 300 mm (1 ft) from wetwell sidewall for every 3 m (10 ft) depth
Operating Frequency
46 KHz
Exposed Materials
PVC
Operating Temperature
-40 °C to 65 °C (-40 °F to 150 °F)
Operating Pressure
0 bar to 1.35 bar (0 psi to 20 psi) maximum
Sensor Cable
RG62AU coaxial, 7.6 m (25 ft) standard length
Options
Options:
Description:
Sensors
Long and short-range models, all Teflon construction, Intrinsically safe, pressure
Hazardous Locations
Intrinsic safety barrier for ultrasonic sensor mounting in hazardous areas. NEMA7 explosion-proof enclosure for electronics mounting in hazardous locations.
Sensor Cable
15 m (50 ft) or 30 m (100 ft) RG62AU coaxial continuous from the ultrasonic sensor - or splice up to a total of 150 m (500 ft) length
Sensor Cable Junction Box
Watertight NEMA4 steel with terminal connection strip
Power Input
9-32 V DC, 2.1-4.95 W depending on options
Data Logger
20 million point Data Logger with output to USB flash drive. Windows software.
Enclosure Heater
Thermostatically controlled - recommended for temperatures below 0 °C (32 °F)
Enclosure Panel Mount
Flange and bracket assembly mounts enclosure in panel face
PSL, OCF and LIT25
End-to-end solutions for wastewater treatment plant
Optional: Intrinsic safety barrier for ultrasonic sensor mounting in hazardous areas. NEMA7 explosion-proof enclosure for electronics mounting in hazardous locations.
PZ Sensor
Class I, Div 2, Groups A, B, C, D
Class I, Div 1, Groups C, D; Class II, Groups E, F, G; Class III; Encl. Type 4
