FlowPulse Handheld Controller Portable Pipe Flow Monitoring
Portable Pipe Flow Monitoring

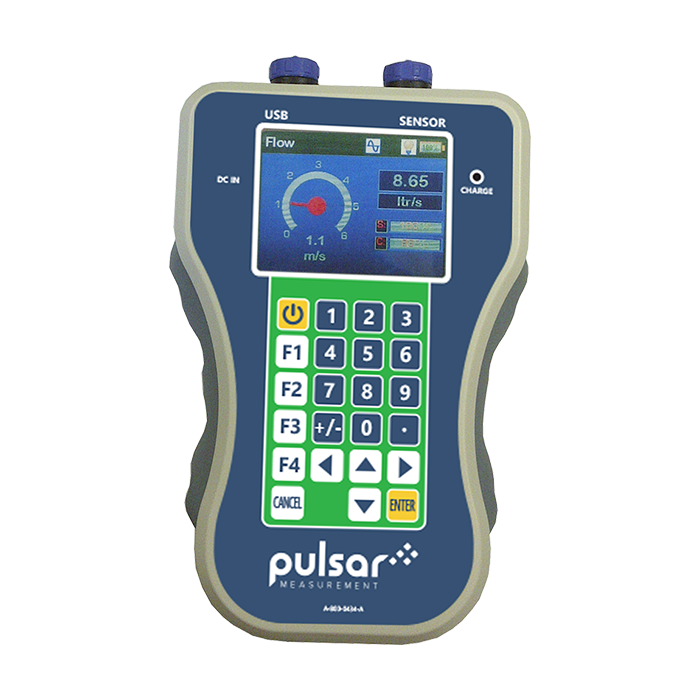

This HandHeld portable unit from Pulsar Measurement is designed for use with the FlowPulse pipe flow sensor, providing portable pipe flow monitoring and offering a toolset that allows programming of the non-contacting pipe flow sensor, monitoring, and data acquisition. The HandHeld controller connects to the pre-installed FlowPulse sensor or can operate as a self-contained kit, giving instant feedback on pipe flow via its color screen.
The FlowPulse HandHeld controller is available as a stand-alone unit to use with existing FlowPulse sensors or can be purchased as a complete kit with a convenient carry case. The portable non-contacting, clamp-on, pipe flow monitoring system allows the operator to view traces and recorded data files - as well as loading and saving parameter files.
Use the portable pipe flow monitoring system to complete system checks, monitor asset performance, or validate inline flow meter readings. Suitable for pump performance monitoring, industrial flow, irrigation flow, food and beverage manufacturers, pharmaceutical manufacturers, and much more!
- Compact, portable controller
- Rechargeable battery or mains operation
- IP65 polycarbonate body
- On-board logging and USB data download gives easy sensor programming
- 3.2-inch color TFT display
- Soft-touch keypad
- Up to 5 hours of continuous operation on one charge
| General Specifications | |
|---|---|
| Spec: | Description: |
| Controller Body Dimensions: | 210 mm x 125 mm x 50 mm (8.27 in x 4.92 in x 1.97 in) |
| Weight: | 0.6 kg (1.3 lbs) |
| Enclosure Material: | Polycarbonate UL94 V2 rated, with weather-proof connectors |
| Operating Temperature (Electronics): | -20 °C to +60 °C (-4 °F to +140 °F) |
| Operating Temperature (Battery Charging): | -20 °C to +40 °C (-4 °F to +104 °F) |
| Rechargeable Batttery: | 11.1 V DC Li-ion cells |
| Battery Duration: | 4 to 5 hours |
| Power Supply: | 12-18 V DC |
| Power Consumption: | 3.5 W at 12 V not charging, 15 W at 12 V when charging |
| Options | |
|---|---|
| Option: | Description: |
| FlowPulse Sensor | Non-invasive flow sensor for the outside of a pipe |
| Flow Monitor | For fixed and permanent installations |
| Product Brochure | Download |
| Datasheet | Download |
| Installation & Instruction Manual | Download |
| Technical Drawing (UNCONTROLLED COPIES) | |
| FlowPulse PC Software V1.3.0 | Download |
| Handheld Setup | Download |
| FlowPulse was able to restore flow monitoring to a pump station quickly, without the need for expensive in-line flow monitoring. | Download |
| Pump Station Flow Monitoring Using FlowPulse at Thames Water Case Study | Download |
| Pulsar Measurement Product Warranty | Download |
- IP65 Polycarbonate body
- CE Approval
