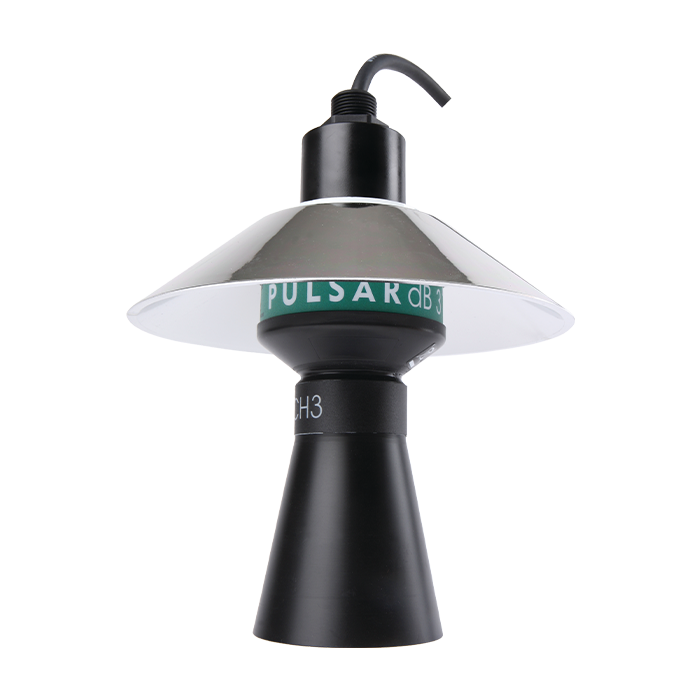

Featuring unique sun and submergence shields, the dBMACH3 is designed specifically for open channel flow applications. dBMACH3 is the first ultrasonic transducer with zero effective blanking distance beyond the nose cone, allowing it to be sited at little as a few millimeters from the high-flow level. One of the critical factors affecting the ultrasonic accuracy is the measurement distance, so by minimizing the distance, accuracy is maximized.
Operating at 125 kHz frequency the transducer provides high resolution and accuracy. Essential in open channel flow applications. The dBMACH3 can be used with the Ultra 4, 5 and TWIN when in open channel flow mode, or can be paired with the FlowCERT, all of which provide a typical accuracy of +/- 1 mm (0.039in). Resolution +/- 0.5 mm (0.019 in). Range 0 mm to 2.4 m (0 in to 7.9 ft).
Specifically designed for non-contacting open channel flow
125 kHz frequency provides high resolution and accuracy
Compatible with Ultra 4, 5, TWIN & FlowCERT
General Specifications
Spec:
Description:
Sensor Body Dimensions:
180 mm D (sunshield) x 205 mm H (7.08 in x 8.1 in)
Weight:
Nominal 1.1 kg (2.4 lb)
Max & Min Temperature (Electronics):
Standard: -30 °C to +90 °C (-22 °F to +194 °F) ATEX: -30 °C to +75 °C (-22 °F to +167 °F)
Measurement Range:
0 mm to 2.4 m (0 in to 7.9 ft)
Accuracy:
±1 mm (0.039 in)
Resolution:
±0.5 mm (0.019 in)
Sensor Body Material:
Valox 357 U and syntactic foam face
Maximum Separation:
500 m (1,640 ft)
Mounting Connection:
BSP or 1” NPT
ENVIRONMENTAL
Enclosure Protection:
IP68 / NEMA 6P
APPROVALS
CE Approval:
2014/30/EU - EMC & 2014/34/EU ATEX Directives. Standards applied: EN 60079-0:2012+A11:2013/ EN 60079-11:2012 / EN 60079-18:2009 / EN 60079-26:2007 / EN 61326-1:2013
ATEX Approval :
Standard ATEX EEx m II T6 or optional EEx ia IIC T6. FM/FMC approval.
PERFORMANCE
Frequency:
125 kHz
Beam Angle:
<10°
Ultra 5 & dBMACH3
Providing accurate flow and level measurement for effluent UV flume.
