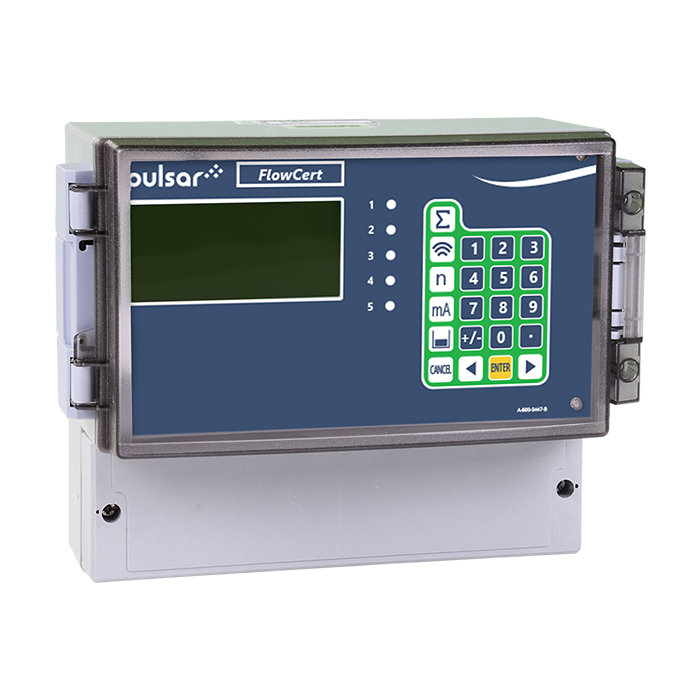

Pulsar Measurement’s FlowCERT provides comprehensive open channel flow measurement with extensive data logging and control functions. It includes a range of pre-programmed flumes and weirs, so setup is quick, simple, and straightforward. The unit is compatible with a range of both contacting and non-contacting sensors and has the flexibility to change with your application.
FlowCERT gives temperature-independent, reliable measurement and logging facilities. The unit includes five alarm/control relays plus 4-20mA output, data logging, and digital input with the ability to accept a velocity sensor input for non-PMD applications.
Area-Velocity Measurement / Open Channel Flow Measurement with No Primary Measuring Device
FlowCERT can be combined with a MicroFlow for velocity measurement. Or for area-velocity flow measurement, FlowCERT can be used with a MicroFlow and dB Transducer for a non-contacting solution.
Open Channel Flow Measurement with a Primary Measuring Device
When you have an application with a Primary Measuring Device (PMD), FlowCERT can be combined with dB transducers up to a dB15.
Data Logging
Pulsar Measurement’s Data Logger provides wall-mounted Ultra Controllers with data logging functionality. The logger records a wealth of information onto the supplied 32GB Micro SD card enabling you to log a wealth of data for the lifetime of the unit. Log interval is user-selectable and logged files are stored in .csv format which can be used with the most widely used spreadsheet software.
Additionally, the Ultra Software Package is a powerful tool that can be used alongside the data logging board, providing users with the ability to program the FlowCERT data logging facility, download, view, and export stored data. However, the software is an optional product, and is supplied with a USB/RJ11 cable for connecting your PC directly to the FlowCERT unit.
Common applications for the FlowCERT unit include high accuracy flow measurement on flumes and weirs, area-velocity applications, open channels, influent and effluent flow monitoring, and effluent discharge monitoring.
To learn more about the FlowCERT or to find out how the unit is used in the field, head to the Downloads tab below and download our FlowCERT case studies.
- Easy prompt set up
- Standard onboard memory gives 1-year log at 10-minute intervals
- 5 control/alarm relays
- Flow totalization and outputs
- Universal flow calculation with 32 set points
- Penstock control using step time
- Modbus and Profibus options
| General Specifications | |
|---|---|
| Spec name: | Description: |
| Controller Body Dimensions: | 235 mm x 184 mm x 120 mm (9.25 in x 7.24 in x 4.72 in) |
| Weight: | 1 kg (2.2 lbs) |
| Cable Entry Detail: | 10 cable entry knock outs, 1 x M16, 5 x M20 underside, 4 x 18 mm dia (PG11) at rear |
| Maximum Separation: | Up to 1,000 m (3,280 ft) |
| IP Rating: | IP65/NEMA 4X |
| Max. and Min Tempeterature (Electronics): | -20 °C to +50 °C (-4 °F to +120 °F) |
| Power Supply: | 115 V AC +5% / - 10%, 230 V AC +5% / - 10% 50/60 Hz, 22-28 V DC, 10 W maximum power (typically 6 W) |
| On Board Programming: | Via Integral Keypad |
| Programming Security: | Via passcode (user selectable and adjustable) |
| Options | |
|---|---|
| Options: | Description: |
| Microflow | For non-contacting velocity open channel flow measurement with no primary measuring device |
| Microflow + dBMACH 3 | For non-contacting area x velocity open channel flow measurement with no primary measuring device |
| Speedy | For contacting velocity measurement for open channel flow measurement with no primary measuring device |
| dB Transducers (up to dB15) | For applications with a primary measuring device, flowCERT can be combined with dB transducers |
| DUET (MCERTS APPROVED) | For MCERTS certified applications, FlowCERT can be combined with DUET for the most accurate MCERTS system in the world (class 1) |
| Transducer mounting brackets | Mounting bracket option for transducers (incl. partnered transducers such as MicroFlow and dBMACH3) |
| Modbus and Datalogging | Optional communication and logging package |
| Profibus V1 and Datalogging instead of RS485 | Optional communication and logging package |
| SD Data Card Logger | Additional logging capacity |
| VIETCIS helps thermal power plant of Formosa Ha Tinh Steel Corporation (FHS) monitor the inlet water flow. | Download |
| Nexteng Enviro Private Limited helps a power plant gain flow measurement readings with an open channel flow measurement solution. | Download |
| Techno Bangla Engineering Ltd, Bangladesh, helps the textile industry achieve open channel flow measurement. | Download |
| Accurate and Reliable Non-Contacting Open Channel Flow Measurement for Sewage Treatment Works in Hong Kong. | Download |
| Succesful open channel flow measurement for Jurong's Water Reclamation Plant. | Download |
| Non-contacting Area-Velocity Flow Measurement Without a PMD. | Download |
| Product Brochure | Download |
| Datasheet | Download |
| Red Star Instruments, Taiwan provide non-contacting open channel flow measurement | Download |
| Installation & Instruction Manual | Download |
| Installation & Instruction Manual - UL | Download |
| Cable Entry Drawing (UNCONTROLLED COPIES) | Download |
| Technical Drawing (UNCONTROLLED COPIES) | Download |
| UltraLog Software Manual | Download |
| MCERTS Certification | Download |
| MicroFlow and FlowCERT on the River of Life Project, Kuala Lumpur, Malaysia. | Download |
| Pulsar Measurement Product Warranty | Download |
- IP65 / NEMA 4x
- CE Approval
- For installation in non-flammable area only.
- Most compatible transducers suitable for flammable atmospheres.
- See sensor / transducer datasheet or brochure
