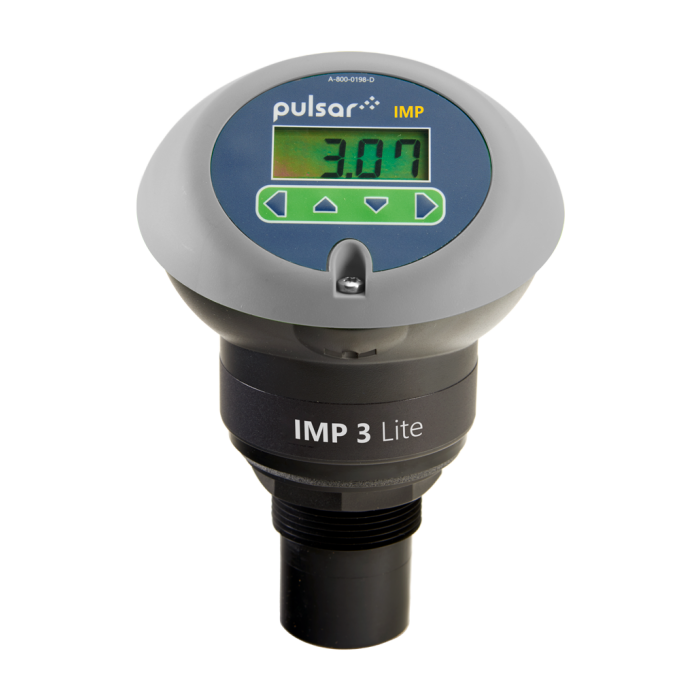

The IMP Lite is part of the IMP non-contacting level sensor range from Pulsar Measurement. It is a lower-cost alternative to the IMP level sensor and is designed to be used wherever you need a reliable, non-contacting indication of level measurement. The IMP Lite is compact and low-profile, when used on battery power for intermittent applications, its high-speed boot up of circa 3 seconds maximizes battery life.
All IMP level sensors from Pulsar Measurement feature unique digital echo processing software and onboard keypads and displays, giving an instant, accurate, and reliable level measurement reading. The units include an analog output to provide simple and easy integration with existing site control systems to drive a display.
IMP non-contacting level sensors are suitable for tank level measurement, water and wastewater applications, stock control, tank volume conversions, industrial level measurement, and many more!
- Compact, self-contained level measurement
- 2-wire configuration
- RJ11 port
- Up to 10 m (32.8 ft) range available
| General Specifications | |
|---|---|
| Spec: | Description: |
| Dimensions | 186 mm (7.3 in) H x 133 mm (5.2 in) D |
| Cable entry | 2 x 16 mm (0.6 in) cable glands, 3.5 mm to 10 mm (0.1 in to 0.4 in) cable diameter |
| Mounting | IMP3 - 3 m (9.8 ft) version: 1.5 in BSP/NPT IMP 6 - 6 m (19.7 ft) version: 1.5 in BSP/NPT IMP10 - 10 m (32.8 ft) version: 2 in BSP/NPT Suits BSP & NPT, parallel and tapered |
| Weight | Approximately 1 kg (2.2 lbs) |
| Temperature (Process) | -40 °C to 80 °C (-40 °F to 176 °F) |
| Temperature (Ambient) | -20 °C to 65 °C (-4 °F to 149 °F) |
| Input Voltage | 11-30 V, 3.5-22 mA |
| Accuracy | ±0.25% or 6 mm (0.2 in); whichever is greater |
| Resolution | ±0.1% or 2 mm (0.1 in); whichever is greater |
| Options | |
|---|---|
| Option: | Description: |
| Variants | IMP IMP I.S. |
| Beam Angle (-3 dB half power) | IMP3: ‹10° inclusive IMP6: ‹10° inclusive IMP10: ‹10° inclusive |
| Operating Frequency | IMP3: 125 kHz IMP6: 75 kHz IMP10: 41 kHz |
| Measurement Range | IMP3: 200 mm to 3 m (7.9 in to 10 ft) IMP6: 300 mm to 6 m (11.8 in to 19.7 ft) IMP10: 300 mm to 10 m (11.8 in to 32.8 ft) |
| Software | IMP PC |
- IP67
