DFM 6.1 Doppler Flow Meter Provides Flow Confirmation for Eel Pass in the United Kingdom

In the UK, there has been a big focus on delivering eel passes. An eel pass is a waterway modification constructed to mitigate the effects of obstructions, especially manmade weirs, on waterways, watercourses, ditches, drains, channels, and flumes, on the movement of eels, fish, and elvers. The UK Environment Agency has guidelines for the design of eel and elver passes for employment in weirs, tidal flaps, and gate and sluice structures. Eel and elver passes have a dual purpose. By separating the eel traffic in the flow of water, more accurate measurement of eel and elver migration is made possible.

Clamp-on Doppler Flow Proves Reliable

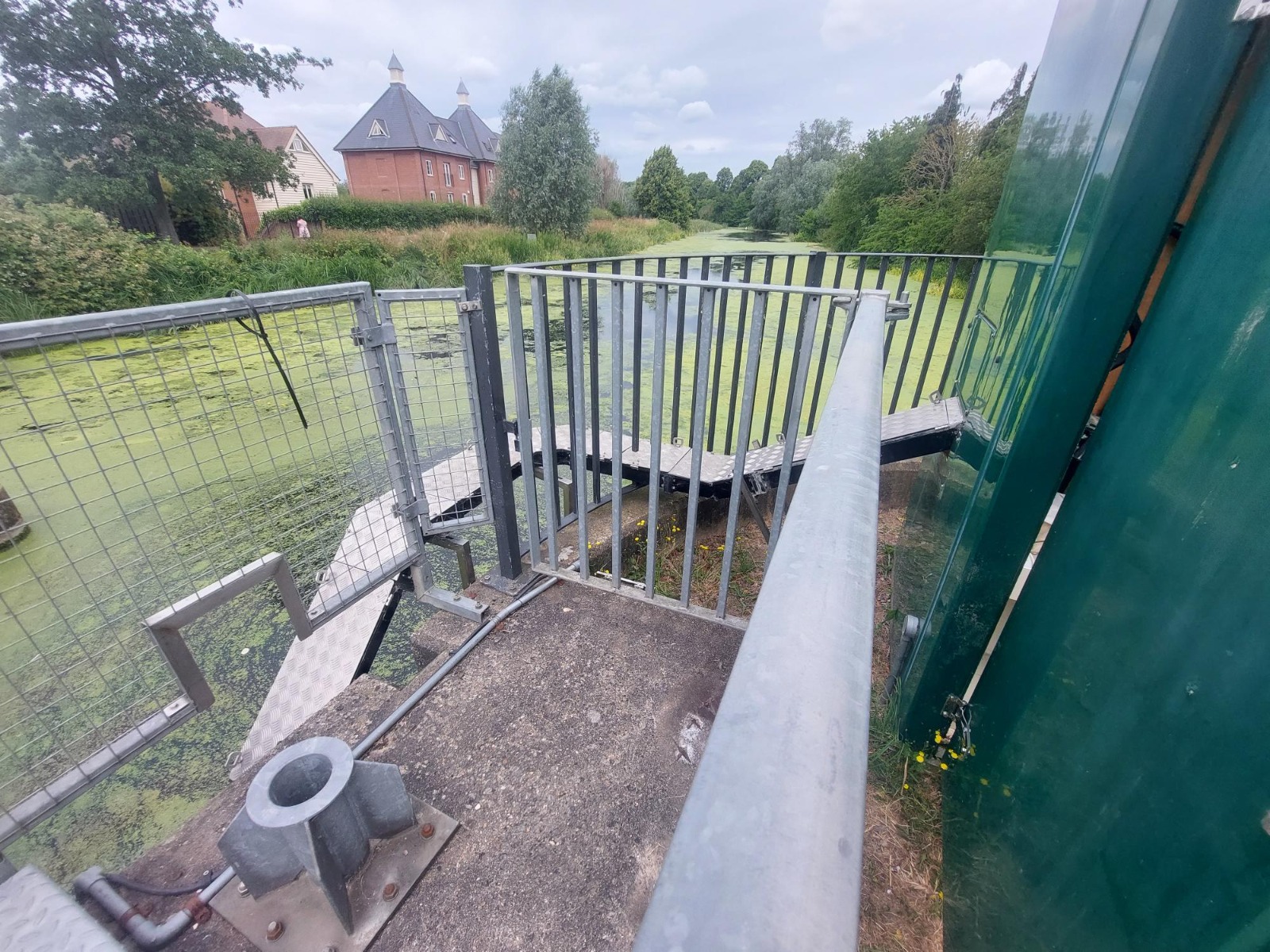

The Environment Agency was looking for a solution to stop tripping the low flow signals, with a view to reduce callouts and provide a more robust measurement and continuous monitoring routine. Their current flow solution was failing to register low flow on the Colchester Eel Pass, in Essex, which subsequently tripped low flow alarms resulting in a number of costly callouts.

To work effectively, eel and fish passes need to direct the flow of water through the structure so that it is not too fast or too trubulent for the eels to comfortably swim through. Eels and elvers are not particularly known for their swimming ability, and their ability to pass a difficult flow condition is limited. Although the eel can sometimes make use of weak flows on rough surfaces or those covered with vegetation, its passage is often compromised by many situations.

Fishways for elvers and eels are often composed of two sections, and is usually kept permanently moist either by using water fed by gravity from the upstream impoundment, or else by sprinkling. The small flow required for moistening the surface is complemented by a more significant flow injected near the base of the pass. which is why having an accuate and reliable flow measurement solution is so important for these fishways.

DFM Provides Flow Confirmation

The Environment Agency was having trouble with thier flow measurement solution on the Eel pass in Colchester as it wasn't registering the flow flows that were being seen on the system. After conducting a trial with the PDFM 5.1 Portable Doppler Flow Meter, where the low flows were picked up immediately, they decided to purchase a fixed DFM 6.1 Doppler Flow Meter.

The DFM 6.1 Doppler flow algorithm filters out background noise and interference. The high-speed digital signal processor discriminates against weak and distorted signals for increased reliability and accuracy. Each DFM 6.1 Doppler Flow Meter Includes a clamp-on ultrasonic sensor, an adjustable stainless steel mounting clamp, and sensor coupling compound. The sensor fits on the outside of any pipe diameter 12.7 mm (0.5 in) or larger. It take just a few minutes to install, with no need to shutdown the flow, or cut into the pipe.

The Environment Agency were able to get accurate and reliable flow measurement within the eel pass to help protect and aid migratory eels up river and protect future fish stocks.
