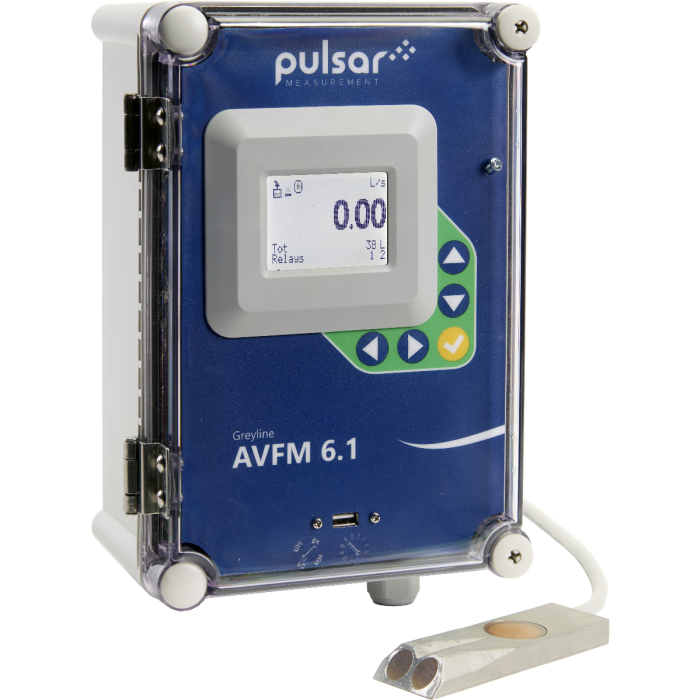

The Area Velocity Flow Measurement method is the most common method of all flow measurements. The AVFM 6.1 Area Velocity Flow Meter uses a submersible ultrasonic sensor measuring both the level and velocity of flowing liquid to calculate flow measurement in an open channel or pipe. The sensors are mounted either inside a pipe or at the bottom of a channel, and the sensor is built to resist fouling, corrosion, and abrasion. The AVFM 6.1 Area Velocity Flow Meter can be configured with the standard submerged velocity-level sensor or with submerged velocity in combination with a separate non-contacting ultrasonic level sensor, which is suitable for highly aerated fluids or those with a high concentration of suspended solids.
The AVFM 6.1 can measure forward flow velocity up to 6 m/s (19.7 ft/s) and reverse flow up to 1.5 m/s (5 ft/s). The electronics and software sample and average flow rates continuously provide stable readings. The submerged velocity/level sensor will measure flow in partially full and surcharged pipes with pressure up to 10 psi. The minimum recommended pipe diameter for the AVFM 6.1 Area-Velocity Flow Meter is 150 mm (5.9 in).
Configuration is simple for the AVFM 6.1 Area Velocity Flow Meter. Just enter the pipe diameter or channel dimensions and the AVFM 6.1 automatically computes and displays flow volume. Configure the AVFM 6.1 for installation in irregular or compound channel shapes by entering the channel width and multiple level points through the simple menu system. Channels for virtually any shape can be monitored with your choice of measurement units.
The Flow Meter will store time and date-stamped flow values at 10-second to 6-minute intervals. Daily flow reports are automatically created where total, minimum, maximum, and average flow rates are displayed on the LCD display. Transfer log files and daily flow reports to any USB flash drive by connecting to the logger’s USB output.
The AVFM 6.1 Area Velocity Flow Meter is suitable for open channel measurement applications such as influent flow monitoring, effluent flow monitoring, wastewater, stormwater, industrial wastewater applications, and irrigation water flow measurement. Its easy-to-use, menu-driven setup means that the AVFM 6.1 Area-Velocity Flow Meter is just minutes away from giving you that all-important flow measurement result.
No flume or weir required – submersible ultrasonic sensor measures velocity and level simultaneously to calculate flow. No moving parts to wear, foul, or clog.
The built-in 5-button keypad, intuitive menu, and large backlit LCD display make the AVFM 6.1 the most operator-friendly area-velocity flow meter on the market.
Fast, simple, installation and set-up.
Improved performance in a wider range of operating conditions.
At a glance, view flow rate, velocity, level, totalizer, relay status, and important diagnostic information on the LCD display.
Three isolated 4-20 mA outputs for flow rate, velocity, and level, and two relay outputs for pulse output or alarm.
6.5 million point data logger for greater flexibility of data monitoring, control, and reporting.
Min, Max, and Total Flow data from the last 365 days is available on the LCD display, or download directly to a USB for easy reporting.
Monitors flow rate, volume total, run hours, and diagnostic information through only two wires with the optional Modbus RTU serial communication output.
General Specifications
Spec name:
Description:
Channel Types
Round pipe, rectangular, trapezoid, egg, or custom shapes
Electronics Enclosure
NEMA4X (IP 66) polycarbonate with clear, shatterproof cover
Accuracy
Level: ±0.25% of reading or ±0.08 in, whichever is greater. Repeatability & Linearity 0.1%. Velocity: ±2% of reading or ±0.012 m/s (0.04 ft/s), whichever is greater. Requires solids or bubbles minimum size of 100 microns, minimum concentration 75 ppm. Repeatability & Linearity 0.5%
Display
White, back-lit matrix - displays flow rate, totalizer, relay states, operating mode, and calibration menu
Programming
Built-in 5-key calibrator with English, French, or Spanish language selection
Power Input
100-240 V AC 50/60 Hz, 10 VA maximum. Optional: 9-32 V DC, 10 W maximum
Outputs
3 Isolated 4-20 mA, 1000 ohm, (Flow, Level, and Velocity) or 0-5 V DC by menu selection
Control Relays
2 Relays, form 'C' dry contacts rated 5 amp SPDT; programmable for flow proportional pulse (sampler/totalizer), flow, and/or level alarm
Data Logging
Programmable 26 million point data capacity, time and date stamped plus formatted flow reports including Total, Average, Minimum, Maximum, and times of occurrence. Includes USB output to Flash Drives and Windows software
Operating Temperature (Electronics):
-20 °C to 60 °C (-5 °F to 140 °F)
Approximate Shipping Weight
4.5 kg (10 lbs)
QZ02L Sensor Specifications
Spec name:
Description:
Velocity Measurement Range
0.031 m/s to 6.2 m/s (0.1 ft/s to 20 ft/s) and reverse flow to -1.5 m/s (-5 ft/s) in fluids containing bubbles or solids with a minimum size of 100 microns and a minimum concentration of 75 ppm to act as acoustic reflectors
Level Measurement Range
Minimum Head: 25.4 mm (1 in). Maximum Head: 4.57 m (15 ft)
Operating Temperature
-15 °C to 80 °C (5 °F to 175 °F)
Exposed Materials
316 stainless steel, epoxy resin, polyurethane
Sensor Cable
7.6 m (25 ft) submersible polyurethane jacket, shielded, 3-coaxial
Sensor Mounting
Includes MB-QZ stainless steel mounting bracket
Temperature Compensation
Automatic, continuous
Options
Options:
Description:
Industrial Automation Protocols
Modbus RTU via RS-485
Sensor Cable
15 m (50 ft) or 30 m (100 ft) submersible, continuous from Sensor - or splice up to a total of 150 m (500 ft) length
Sensor Cable Junction Box
NEMA4 polycarbonate with connection terminal strip
Enclosure Heater
Thermostatically controlled to -40 °C (-40 °F); recommended for temperatures below 0 °C (32 °F)
Intrinsic Safety Barriers
For Sensor mounting in Class I,II,III, Div. I,II, Groups C,D,E,F,G hazardous locations
Sensors
Separate non-contacting ultrasonic level sensor and submerged velocity sensor
Sensor Mounting Bands
Stainless steel sensor mounting bands for pipes 150 mm to 1800 mm (6 in to 72 in) diameter
